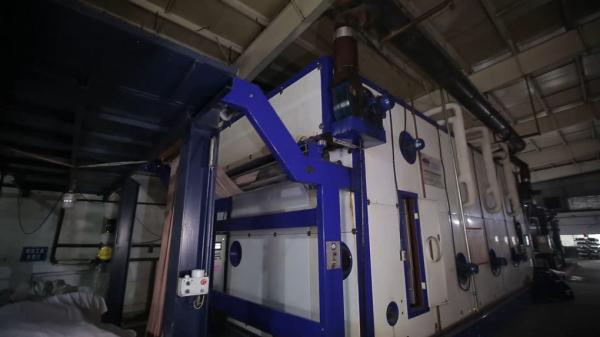

    Thermal Oil Flannel Steamer Machine 330m Content

    Ask Lasest Price
    Brand Name : YONGXIN
    Model Number : YXLM1878-280
    Payment Terms : L/C, T/T
    Supply Ability : 10 SETS PER MONTH
    Delivery Time : 60 DAYS
    • Product Details
    • Company Profile

    Thermal Oil Flannel Steamer Machine 330m Content

    Flannel Steamer Machine For 250m Content

    Working width2650mm
    Content330m
    Steam consumption350-400KG/H
    Adjustable loop length1.5m~3m
    Heat ResourceThermal oil
    Installed power35kw
    Dimension of machine(LxWxH)11527×4496×5003mm

    1. Content:330m

    2. Gearing side:right or left(face the machine,opposite the gate)

    3. Roller width:2800mm;Working width:Maximum 2650mm

    4. Suitable fiber:50~500g/m2 knitting and weaving fiber

    5. Loading and unloading:Loading from top,same sides in and out,single loading and unloading

    6. Machine speed:5~70m/min

    7. Dimension:L×W×H(mm) 11527×4496×5003(just for reference)

    8. Loop length:1.5m~3m can be adjustable

    9. Temperature difference from right and left wall:±1﹪℃

    10. Gearing:Frequency inverter,Frequency motor

    11. Control:PLC from Siemens, touch screen computer from Kinco

    12. Running method:Continuous

    13. Power capacity:35Kw

    14. Heating resource:Thermal oil

    15. Dwell time:5-8mins for disperse process
