    420m Content Continuous Loop Ager Automatic Textile Machine

    Ask Lasest Price
    Brand Name : YONGXIN
    Model Number : YXLM1878-220
    Price :
    Payment Terms : L/C, T/T
    Supply Ability : 10 SETS PER MONTH
    Delivery Time : 60 DAYS
    • Product Details
    • Company Profile

    420m Content Continuous Loop Ager Automatic Textile Machine

    420m Content Continuous Loop Ager Machine

    1. Content:420m

    2. Gearing side:right or left(face the machine,opposite the gate)

    3. Roller width:2200mm;Working width:Maximum 2050mm

    4. Suitable fiber:50~500g/m2 knitting and weaving fiber

    5. Loading and unloading:Loading from top,same sides in and out,single loading and unloading

    6. Machine speed:5~70m/min

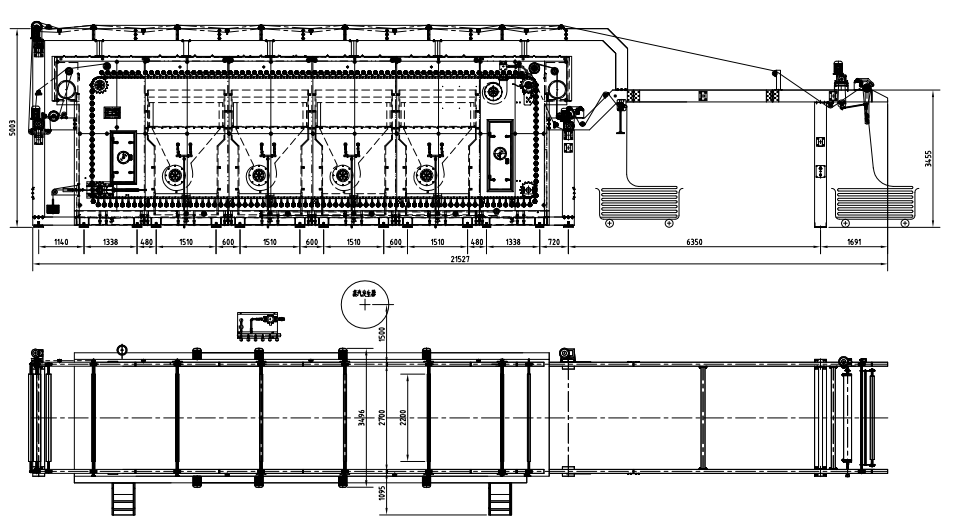

    7. Dimension:L×W×H(mm) 21527×4496×5003(just for reference)

    8. Loop length:1.5m~3m can be adjustable

    9. Temperature difference from right and left wall:±1﹪℃

    10. Gearing:Frequency inverter,Frequency motor

    11. Control:PLC from Siemens, touch screen computer from Kinco

    12. Running method:Continuous

    13. Power capacity:45Kw

    14. Heating resource:Steam only

    15. Dwell time:10-15mins for reactive process
