    Steam Natural Gas Heating Loop Steamer Machine 17527×4496×5003mm

    Ask Lasest Price
    Brand Name : YONGXIN
    Model Number : YXLM1878-300
    Payment Terms : L/C, T/T
    Supply Ability : 10 SETS PER MONTH
    Delivery Time : 60 DAYS
    • Product Details
    • Company Profile

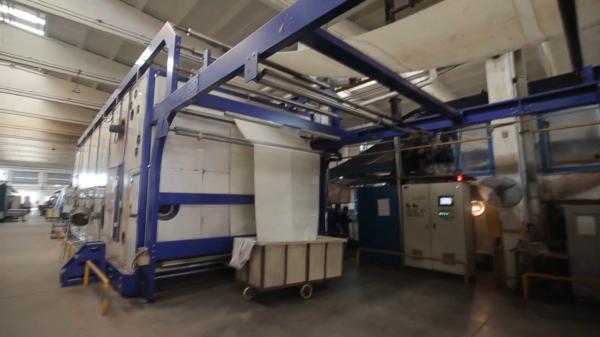

    Steam Natural Gas Heating Loop Steamer Machine 17527×4496×5003mm

    420m Content Steam&Natural Gas Heating Loop Steamer Machine

    Working width2650mm
    Content420m
    Dwell time5-8 mins
    Adjustable loop length1.5m~3m
    Heat ResourceSteam&Natural Gas
    Installed power45kw
    Dimension of machine(LxWxH)17527×4496×4503mm

    1. Content:420m

    2. Gearing side:right or left(face the machine,opposite the gate)

    3. Roller width:2800mm;Working width:Maximum 2650mm

    4. Suitable fiber:50~500g/m2 knitting and weaving fiber

    5. Loading and unloading:Loading from top,same sides in and out,single loading and unloading

    6. Machine speed:5~70m/min

    7. Dimension:L×W×H(mm) 17527×4496×5003(just for reference)

    8. Loop length:1.5m~3m can be adjustable

    9. Temperature difference from right and left wall:±1﹪℃

    10. Gearing:Frequency inverter,Frequency motor

    11. Control:PLC from Siemens, touch screen computer from Kinco

    12. Running method:Continuous

    13. Power capacity:45Kw

    14. Heating resource:Steam&Natural Gas

    15. Dwell time:10-15mins for reactive process,5-8mins for disperse process
